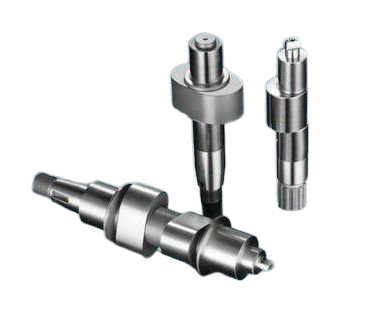

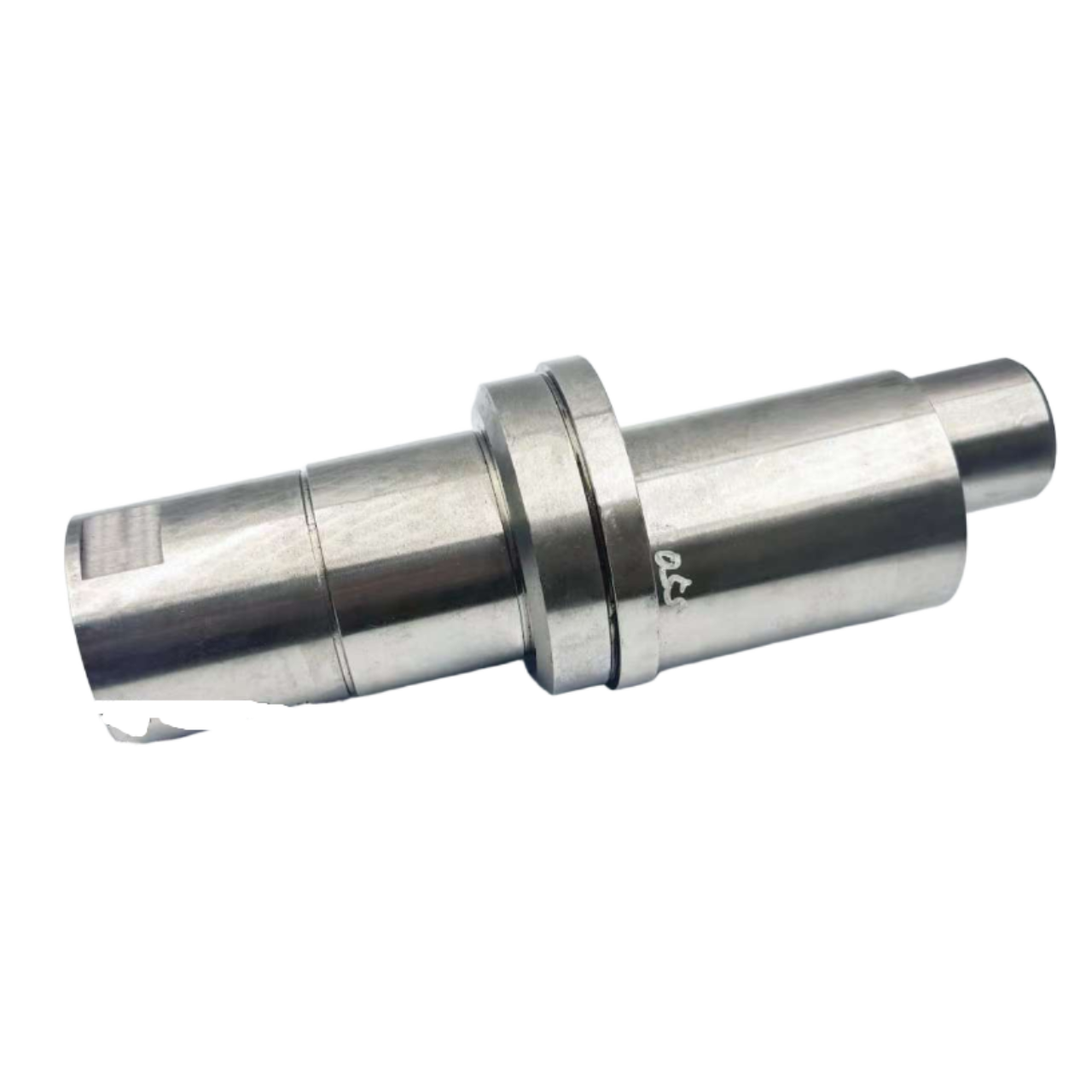

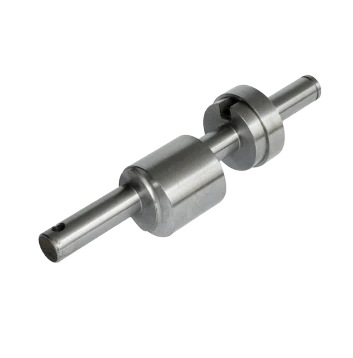

Forging Alloy Steel Transmission Eccentric Shaft

Eccentric shaft is a type of shaft component whose axis is not on the same straight line as the center of the outer circle, resulting in a certain eccentricity, that is, the geometric center of the shaft does not coincide with the center of rotation. Its basic structure mainly includes two parts: axis and eccentricity. According to actual application needs, it can be designed in different structural forms such as single eccentricity, double eccentricity, and multiple eccentricity.

Product Description

Size:OD800*L200;OD300*L2000;etc

Material:Alloy Steel,such as 42CrMo,c

Heat treatment:Quenching and Tempering

Surface treatment:Surface quenching,carburizing，etc

Surface Hardness:HRC50-60

Depth of Quencheded Layer:2-4mm

Production Capacity:500 tons per month

Transport Package:Wooden box

Service:Customized

Warranty Period:One year

Application

In the automotive industry, the crankshaft of a car engine is a typical eccentric shaft that converts the reciprocating motion of the piston into rotational motion. In construction and mining machinery, the mixing blades of concrete mixers and vibrating screens of mining machinery are driven by eccentric shafts. In addition, eccentric shafts also play a key role in the feed mechanisms, pumps, compressors, and other equipment of metal processing machines.

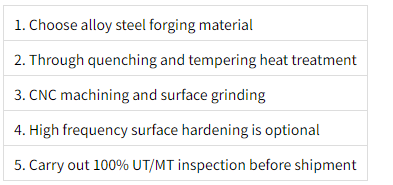

Feature

Production Procedure

Forging ,rough machining,heat treatment:normalizing+quenching+tempering,final processing

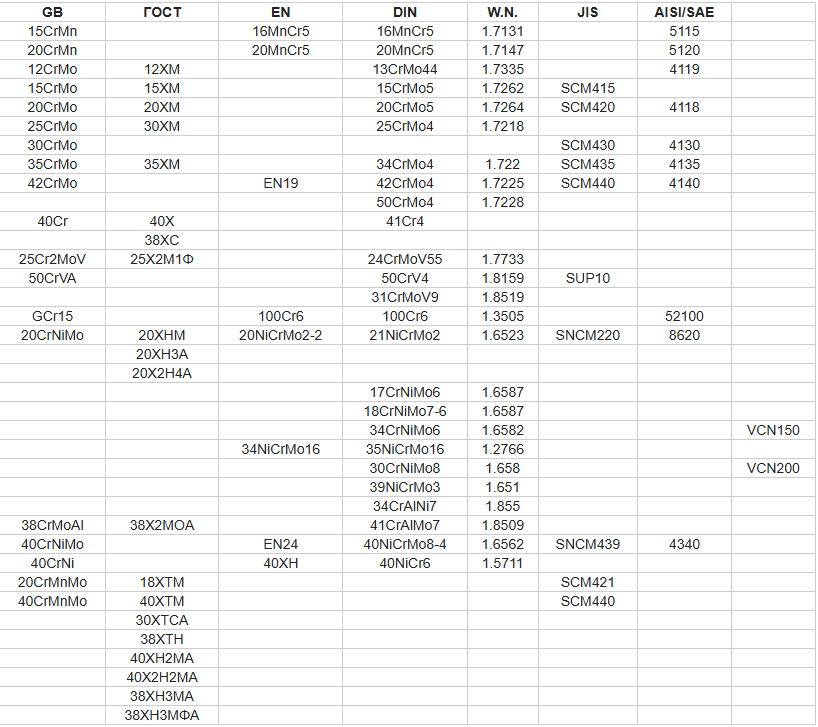

Steel Grade
